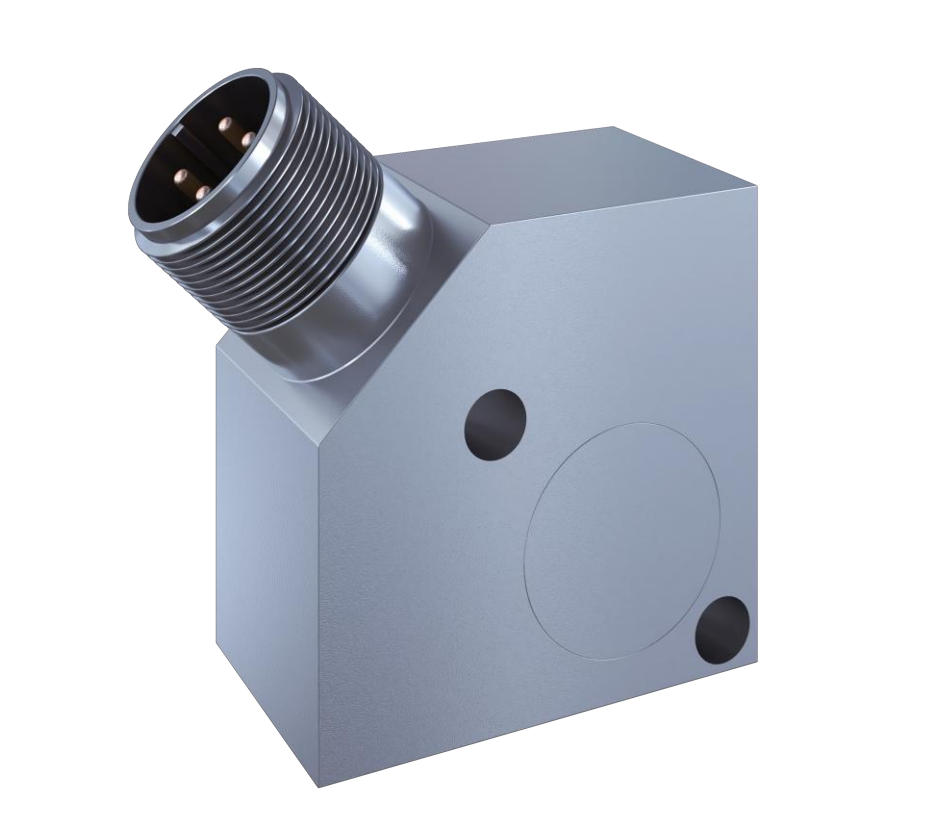

SF-D300 介绍 Introduction
动态IEPE隔离二芯低阻电压输出。
隔离浮置，工业现场监测，抗干扰性能强。
三向输出，可同时测量X、Y、Z 方向。
Dynamic IEPE isolated two core low impedance voltage output.
Isolation floating, industrial site monitoring, strong anti-interference performance.
Three way output, capable of measuring X, Y, and Z directions simultaneously.

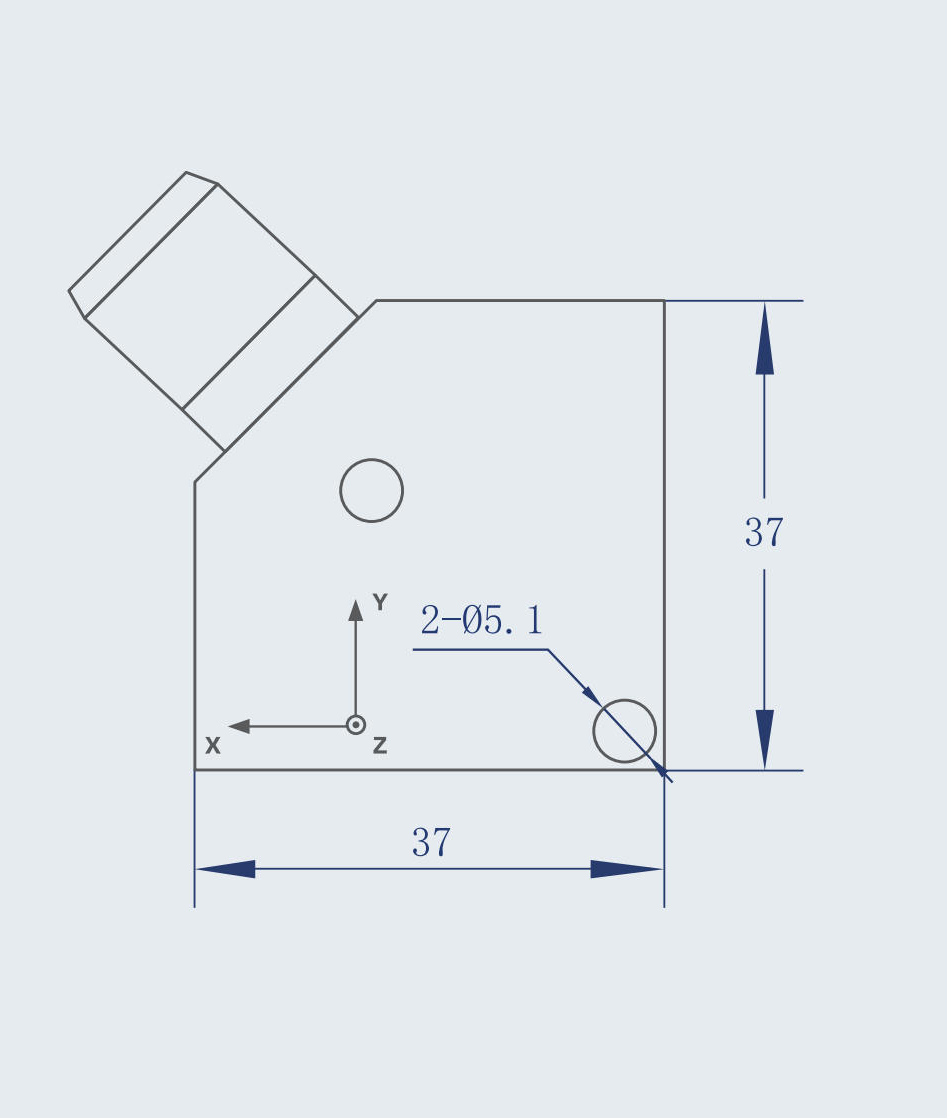

外形尺寸及产品参数 Dimensions and Product Parameters
| 灵敏度(ACI) Sensitivity (ACI) | 0.4mA/g |
| 测量范围(峰值) Measurement range | ±20g |
| 振幅非线性 Nonlinear amplitude | <2% |
| 频率响应 Frequency response | 5~1,000Hz(±1dB) |
| 横向灵敏度比 Lateral sensitivity ratio | ≤5% |
| 供电电压 Power supply voltage | 15VDC~30VDC |
| 中点偏置电流 Midpoint bias current | 12mA |
| 工作温度 Working temperature | -40°C~+85°C |
| 冲击极限(峰值) Impact limit (peak value) | 1000g |
| 防护等级 Protection level | IP65 |
| 材质 Material | 304不锈钢stainless steel |
