隔爆气体探测器:SF-8800

发布时间:  2026-06-05 15:50:55

SF-8800 介绍 Introduction

SF-8800(可燃气体)是利用物理或化学方法检测气体,通过内部电路转换为4~20mA或RS485输出,可广泛应用于燃气、石油化工、冶金、钢铁、炼焦、电力等存在可燃或有毒有害气体的各行各业,是保证财产和人身安全的理想监测仪器。

SF-8800 (Combustible Gas) is a monitoring instrument that uses physical or chemical methods to detect gases and converts them into 4-20mA or RS485 output through internal circuits. It can be widely used in various industries such as gas, petrochemicals, metallurgy, steel, coking, and electricity where flammable or toxic gases exist. It is an ideal monitoring instrument for ensuring property and personal safety.

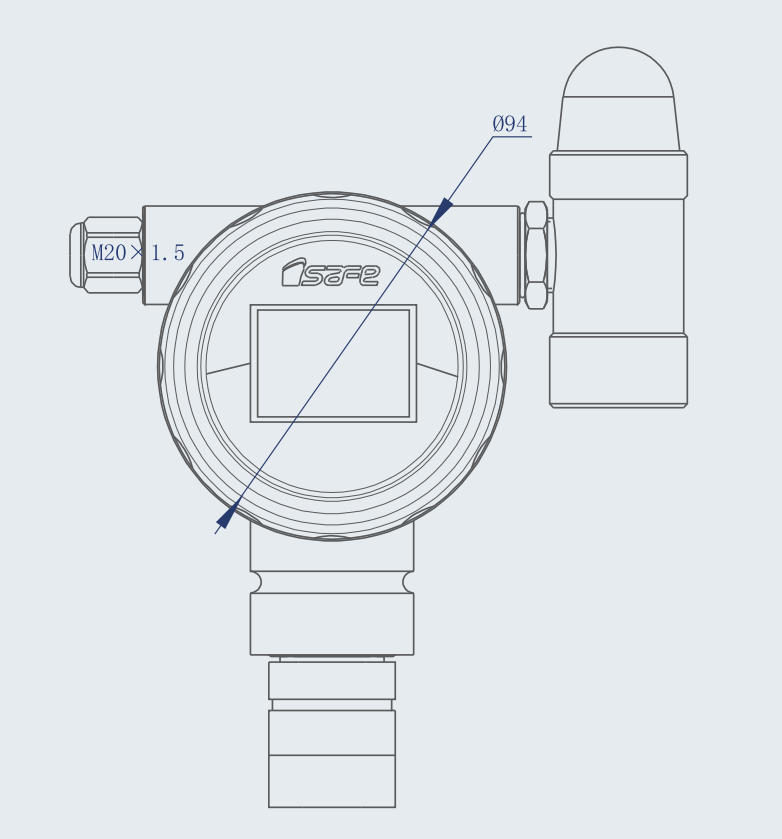

外形尺寸及产品参数 Dimensions and Product Parameters

精度 Accuracy ±5%F.S
安装 Install 安装支架mounting bracket
工作电压 Working Voltage 9~36VDC
工作温度 Working temperature -40℃~60℃
输出信号 Output signal 4~20mA, RS485
防护等级 Protection level IP66
防爆等级 Explosion-proof rating Ex ia II C T6 Ga
材质 Material 304/316L
