SF-LAPT3-3 介绍 Introduction

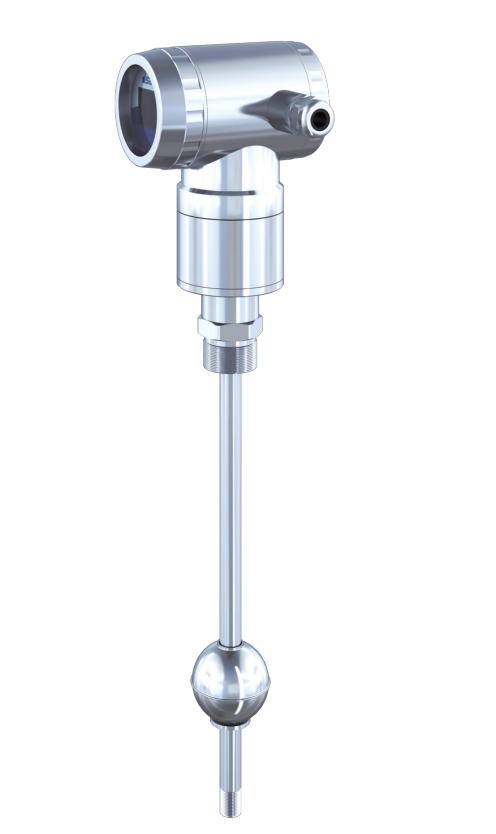

SF-LAPT3-3
磁致伸缩液位计可广泛适用于高温、高压、粘稠、脏污介质、含腊等油品以及易燃、易爆、腐蚀性等介质的液位(界位)测量,浮球液位计可用于石油、化工原料储存、工业流程、生化、医药、食品饮料、罐区管理和加油站地下库存等各种液罐工业计量和控制。
The SF-LAPT3-3 magnetostrictive level gauge can be widely used for measuring the liquid level (boundary) of high temperature, high pressure, viscous, dirty media, oil containing wax, as well as flammable, explosive, corrosive and other media. The floating ball level gauge can be used for measuring and controlling various liquid tank industries such as petroleum, chemical raw material storage, industrial processes, biochemistry, medicine, food and beverage, tank area management, and underground inventory of gas stations.

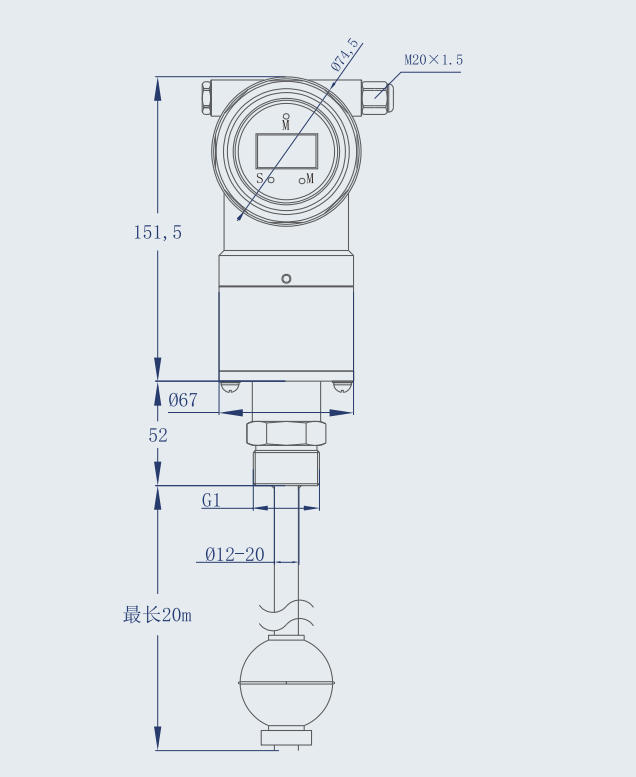

外形尺寸及产品参数 Dimensions and Product Parameters

| 测量范围 Measurement range | 0~500-0~20000mm |
| 测量精度 Measurement accuracy | ±1mm |
| 工作电源 Working power supply | 24V±10%d.c |
| 输出信号 Output signal | 4~20mA+HART |
| 安装 Install | 法兰/螺纹安装 |
| 介质比重 Specific gravity of medium | >500Kg/m³ |
| 工作压力 Working pressure | 0.6MPa |
| 工作温度 Working temperature | -20℃~60℃ |
| 防护等级 Protection level | IP66 |
| 防爆等级 Explosion-proof rating | Ex ia II C T6 Ga |
| 材质 Material | 304/316L |
