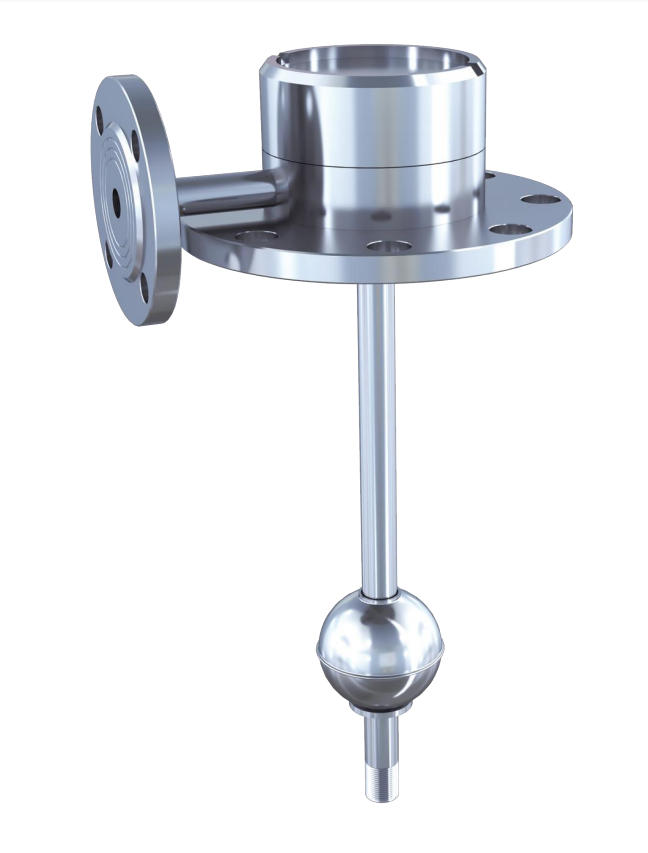

SF-LAPT1/2/3-3 介绍 Introduction
SF-LAPT1/2/3-3
带温度测量的浮球液位变送器可广泛适用于易燃、易爆、腐蚀性等介质的液位的连续测量和1～3路不同位置的温度测量。浮球液位计可用于石油、化工原料储存、工业流程、生化、医药、食品饮料、罐区管理和加油站地下库存等各种液罐的液位工业计量和控制。
The SF-LAPT1/2/3-3 float level transmitter with temperature measurement can be widely used for continuous measurement of liquid level in flammable, explosive, corrosive and other media, as well as temperature measurement in 1-3 different positions. Floating ball level gauges can be used for industrial measurement and control of liquid levels in various tanks, including petroleum, chemical raw material storage, industrial processes, biochemistry, pharmaceuticals, food and beverage, tank area management, and underground inventory at gas stations.

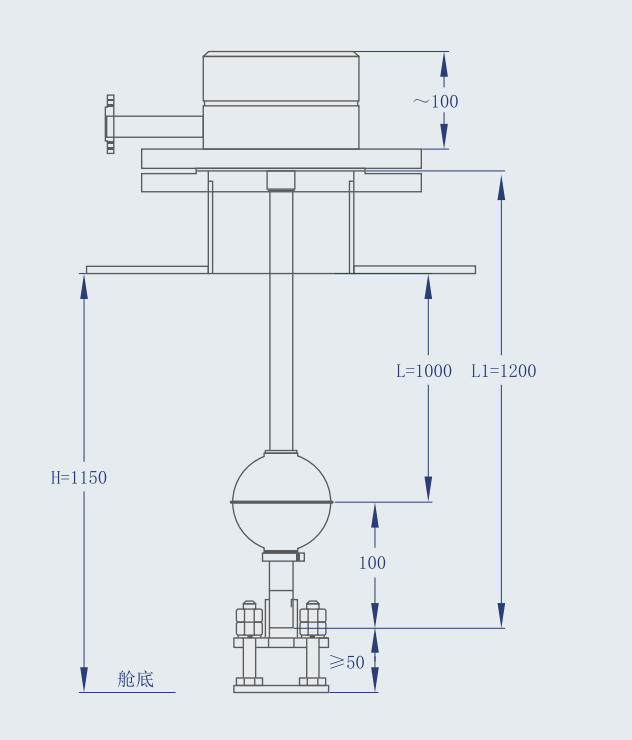

外形尺寸及产品参数 Dimensions and Product Parameters
| 测量范围 Measurement range | 01000～10000mm |
| 测量精度 Measurement accuracy | ±1%F.S.（>1000mm） |
| 工作电源 Working power supply | 24V±10%d.c.550Ω负载 |
| 输出信号 Output signal | 4～20mA，二线制 PT100 ，三线制 |
| 信号传输 Signal transmission distance | 1000m |
| 介质比重 Specific gravity of medium | >500Kg/m³ |
| 工作压力 Working pressure | 0.6MPa |
| 工作温度 Working temperature | -25℃～+60℃ |
| 防护等级 Protection level | IP56 |
| 防爆等级 Explosion-proof rating | Ex ia II C T6 Ga |
| 材质 Material | 304/316L |
