SF-LSC-2 介绍 Introduction

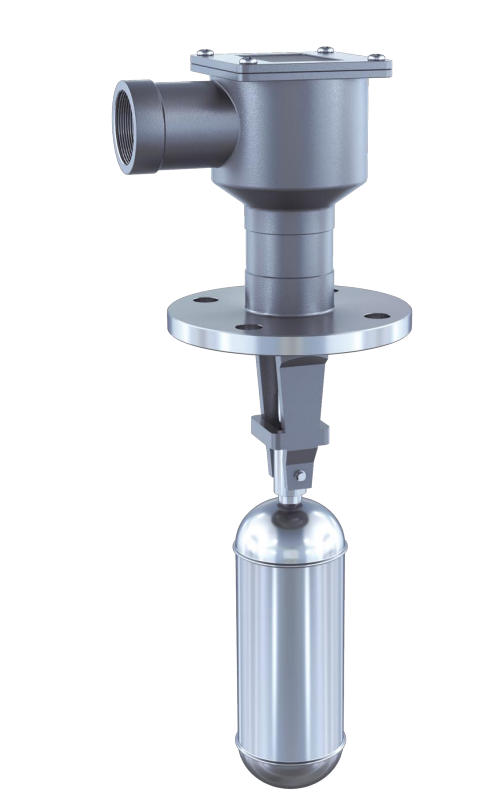

SF-LSC-2
浮球液位传感器可广泛适用于易燃、易爆、腐蚀性等介质的液位的指定液位高度测量。浮球液位计可用于石油、化工原料储存、工业流程、生化、医药、食品饮料、罐区管理和加油站地下库存等各种液罐工业计量和控制。
The SF-LSC-2 float level sensor can be widely used for measuring the specified liquid level height of flammable, explosive, corrosive and other media. The float level gauge can be used for industrial measurement and control of various liquid tanks such as petroleum, chemical raw material storage, industrial processes, biochemistry, medicine, food and beverage, tank area management, and underground inventory of gas stations.

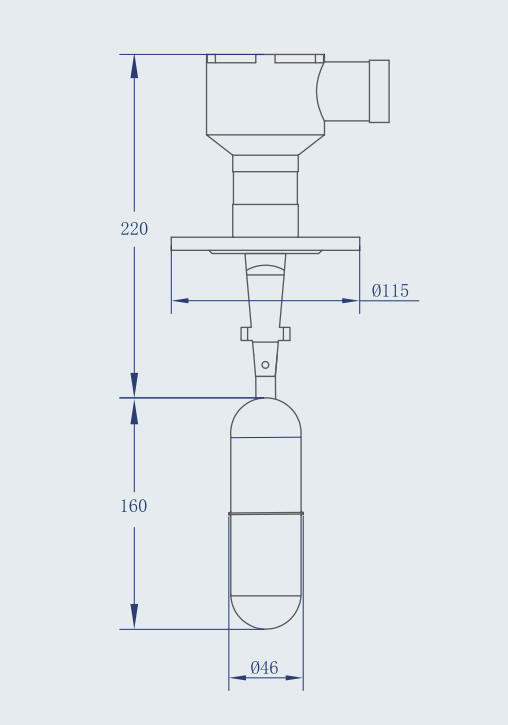

外形尺寸及产品参数 Dimensions and Product Parameters
| 触点容量 Contact capacity | 250V AC 40VA 1A 250V DC 20W 0.5A |
| 触点型式 Contact type | 常开、常闭，二组 |
| 介质比重 Specific gravity of medium | >770Kg/m³ |
| 最高工作压力 Maximun work pressure | 1MPa |
| 工作温度 Working temperature | -25℃～+70℃ |
| 最高工作温度 Maximum work temperature | 120℃ |
| 防护等级 Protection level | IP56 |
| 防爆等级 Explosion-proof rating | Ex ia II C T6 Ga |
| 材质 Material | 304/316L |
