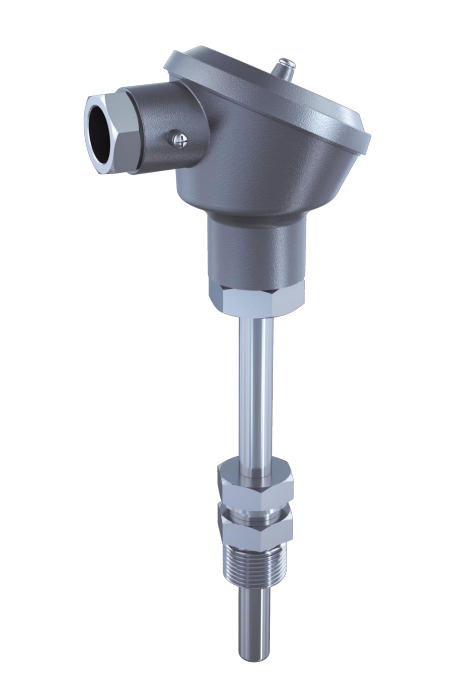

SF-TA1E1 介绍 Introduction

SF-TA1E1温度变送器是利用铂电阻的阻值随温度变化而变化，且呈一定函数关系的特性来测量被测介质的温度。传感器采用了高性能、高可靠进口铂电阻。经过精密的温度和非线性补偿，采用性能良好的模块化信号处理工艺技术，对介质温度进行测量校准，输出工业控制标准信号。全不锈钢一体化加工，具有体积小、热响应快等特点;专用屏蔽导线，使用温度范围宽;安装方便，具有极高的抗振、抗冲击性能。

The SF-TA1E1 temperature transmitter measures the temperature of the measured medium by utilizing the characteristic that the resistance of a platinum resistor changes with temperature and exhibits a certain functional relationship. The sensor adopts high-performance and highly reliable imported platinum resistors. After precisetemperature and nonlinear compensation, using high-performance modular signal processing technology, the temperature of the medium is measured and calibrated, andindustrial control standard signals are output. All stainless steel integrated processing, with characteristics such as small volume and fast thermal response; Specialized shielded wire with a wide temperature range for use; Easy to install, with extremely high resistance to vibration and impact.

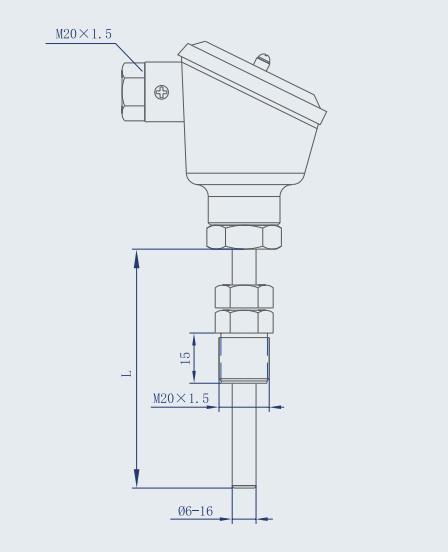

外形尺寸及产品参数 Dimensions and Product Parameters
